K-SERIES

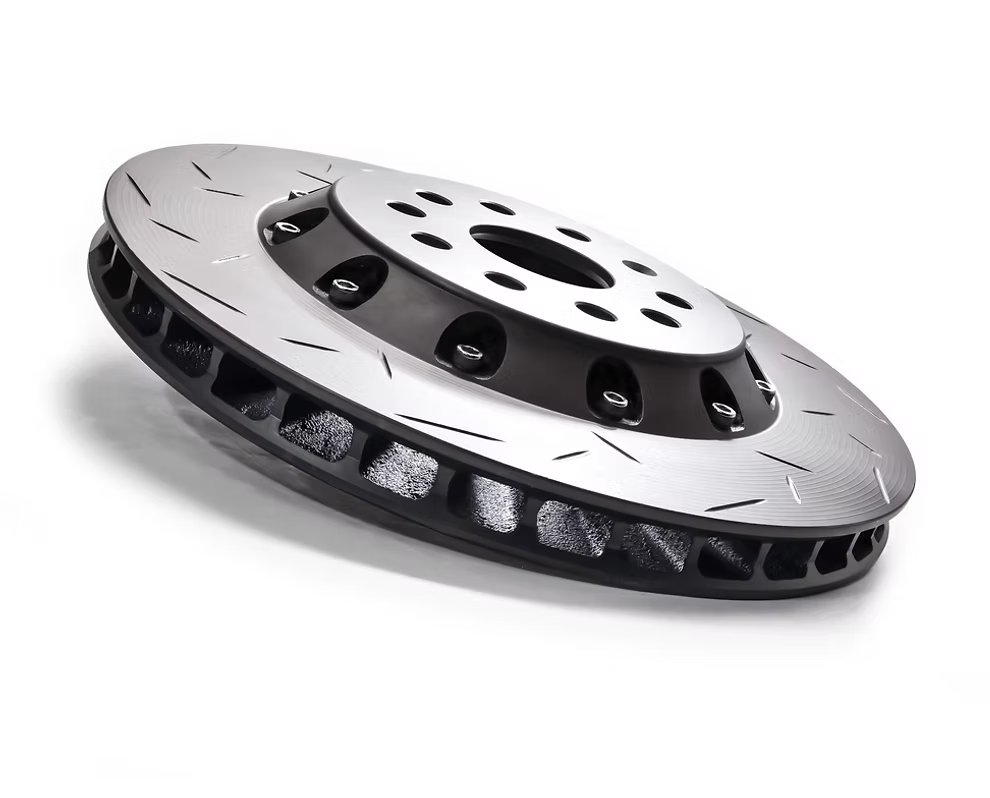

ROTORS OF DISTINCTION

Choice of materials are the most crucial
ingredients when producing reliable brake discs.
Each Nashin disc is produced from a combination of high quality steel (FC-25) mixed with carbon (known as high cast carbon). The results of combining both material types means that the brake discs are far more friction coefficient when compared to normal steel.
Rotors produced entirely from steel (especially lower grade steel such as FC-20 / FC-22) expand by as much as 1.2-1.5mm when reaching
temperatures of 500°C. The equivalent Nashin rotor produced in high carbon will only expand
around 0.45mm in comparison. As a result Nashin brake rotors are able to withstand higher levels of stress and temperature without excessive material expansion or distortion.

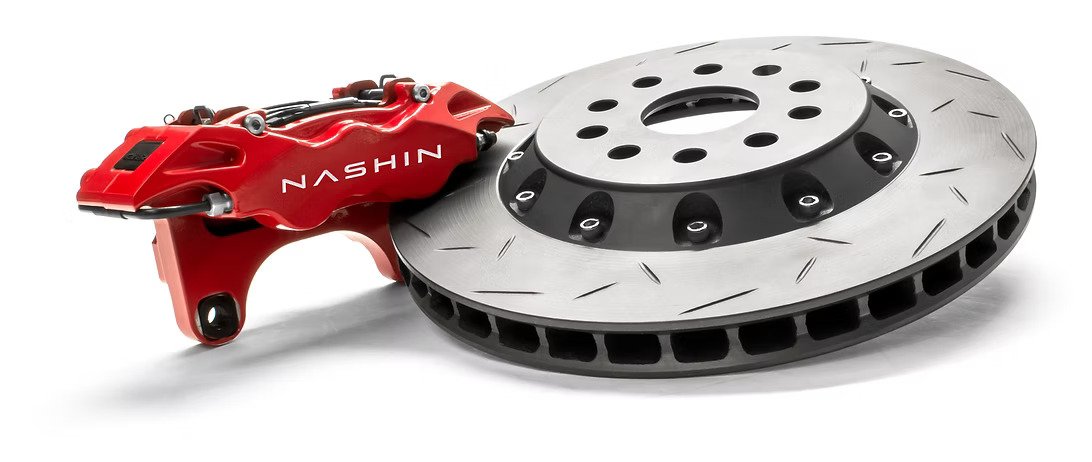

CALIPERS BUILT TO LAST

With any brake system strength is always the key to reliable continuous stopping power.
Much like our brake discs and rotors, material choice plays a key element to ensuring the perfect Performance Brake Kit. Here at Nashin we choose to use a more expensive T6-6066 raw alloy material from which to produce our caliper bodies. T6-6066 provides improved durability over the more common T6-6061 and is less likely to deform when subject to extreme temperature changes.
In addition our brake caliper pistons follow a strict T651 heat treatment process which takes over twice the time of standard heat treatments. This improved process ensures the pistons are far stronger and more resilient to the harsh conditions associated with braking.

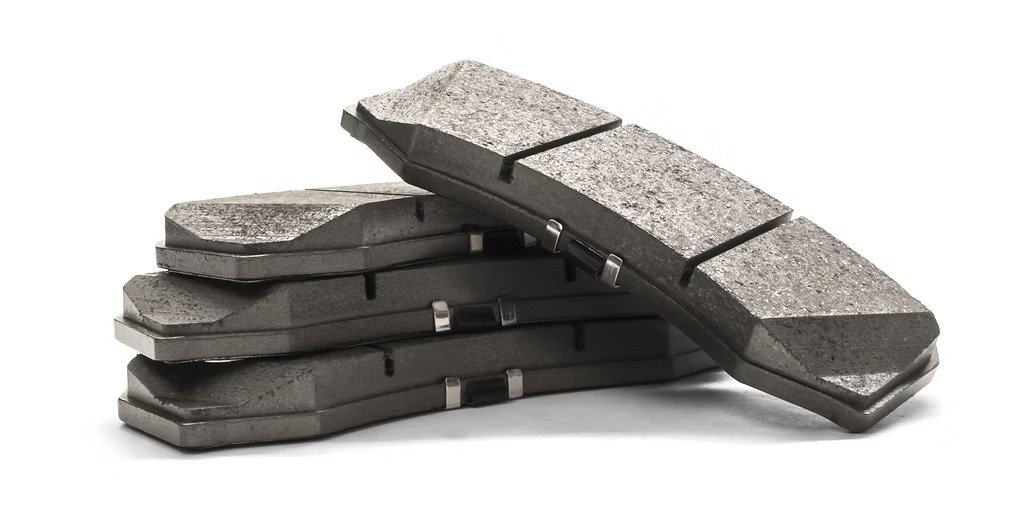

PERFORMANCE BRAKE PAD OPTIONS

Each Nashin Performance Brake Kit is supplied as standard with our Sports pad, however we offer a wide range of optional brake pads, each designed for different driving styles or environments.

​Eco Pad - Our entry level brake pad and standard issue in all of our brake kits. Designed for fast road and occasional track days our green pad offers similar characteristics to a standard road pad with low dust emittance and respectable initial bite from low temperature. High temp fade resistance is improved when compared to the OE brake pad offering an improved platform for fast road and occasional track day use.

​Sports Pad - Designed to be suitable for road use but with a heavier metallic compound, our Sports pad is also once again for fast road our silver pads offer an improved initial bite with extended high temperature fade resistance against the green option, however as a result the level of brake dust emitted is increased as well as increased noise levels.

Sports+ Pad - Produced with competition in mind our red pads have been specifically created for track / circuit use. Providing an impressive bite from the moment the flag drops our red pads will continue to perform even when the temperatures rise! Not suitable for road use.

Competition Pads - The ultimate pads created for high level competition use, where continuous heavy braking and excessive brake temperatures are a common factor. With a high ceramic content our gold pads are formulated to be at their optimum performance capability between 270°C - 800°C. Not suitable for road use.
